Prouducts

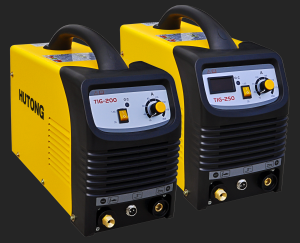

TIG Series MOSFET Inverter DC TIG Welder



hutong


Product description:

  1. Adopting advanced inverter technology,high working frequency,small in size,light in weight and portable.
  2. Protection equipment is set internally to prevent over heat,over current.
  3. Original imported inverter components,energy saving.
  4. High capacity fast recovery diode,strong anti-interference.
  5. High frequency arc starting,easy striking at 5Amps.
  6. Reasonable structure technology,reliable and durable,easy for maintenance.
  7. Adopt advance cooling technology,more efficient and more stable than traditional machines.
  8. Suitable for materials like low carbon steel,medium carbon steel and alloy steel ,continuous welding and beautiful welding seam.
  9. With tri-proof design and suitable in kinds of adverse circumstance.



Model

TIG-160

TIG-200

TIG-250

Input power voltage (V)

AC-220±15

AC-220±15

AC-220±15

Frequency (Hz)

50/60

50/60

50/60

Rated output voltage  (V)

17.2

17.2

18

Rated input current  (A)

22

22

25.7

No-load voltage (V)

65V

65V

65V

Duty cycle (%)

60

60

60

Power factor

0.73

0.73

0.73

Current adjusting range (A)

8-160

8-200

8-250

Insulation class

F

F

F

Efficiency (%)

87

87

87

Case protection degree

IP21

IP21

IP21

Overall dimension (mm)

450*280*340

450*280*340

450*280*340

Weight (kg)

7

7

9
