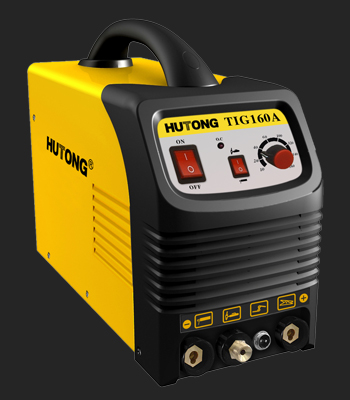

  TIG-A Series MOSFET Inverter DC MMA TIG Welder



hutong



Product description:

  1) Adopting advanced inverter technology,high working frequency,small in size,light in weight and portable

  2) One machine with TIG/MMA welding

  3) Production equipment is set internally to prevent over heat,over current

  4) Original imported inverter components,energy saving

  5) High capacity fast recovery diode,strong anti-interference

  6) High frequency arc starting,easy striking at 5Amps

  7) Reasonable structure twechnology, reliable and durable,easy for maintenance

  8) Adopt advance cooling technology,more efficient and more stable than traditional machines

  9) Suitable for materials like low carbon steel,medium carbon steel and alloy steel,continuous welding and beautiful welding seam



Standard Accessories:

  1) Torch 1pc

  2) Ground wire (16mm²)  2 meters

  3) Earth clamp (300A)   1pc

  4) Quick connector      2pc





Model

TIG-160A

TIG-200A

TIG-250A

Input power voltage (V)

AC-220±10

AC-220±10

AC-220±10

Frequency (Hz)

50/60

50/60

50/60

Rated input current

MMA: 33A

TIG: 20A

MMA: 43A

TIG: 28A

MMA: 14.4A

TIG: 9.6A

No-load voltage (V)

56V

65V

65V

Current adjusting range (A)

10-160

10-200

10-250

Rated output voltage

MMA: 26.4V

TIG: 16.4V

MMA: 26.4V

TIG: 16.4V

MMA: 28V

TIG: 18V

Duty cycle (%)

60

60

60

No-load power (W)

<100W

<100W

<100W

Arc starting

HF

HF

HF

Efficiency (%)

80

87

87

Power factor

0.73

0.73

0.73

Insulation class

F

F

F

Case protection degree

IP21

IP21

IP21

Weight (kg)

7

7

9

Overall dimension (mm)

375*155*232

406*153*232

406*153*232
